Band Sawing Machines With Hydraulic Equipment

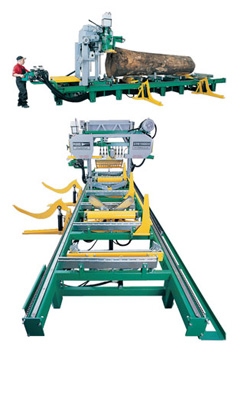

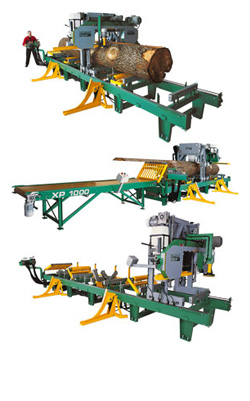

CTR 1300 Hydraulic

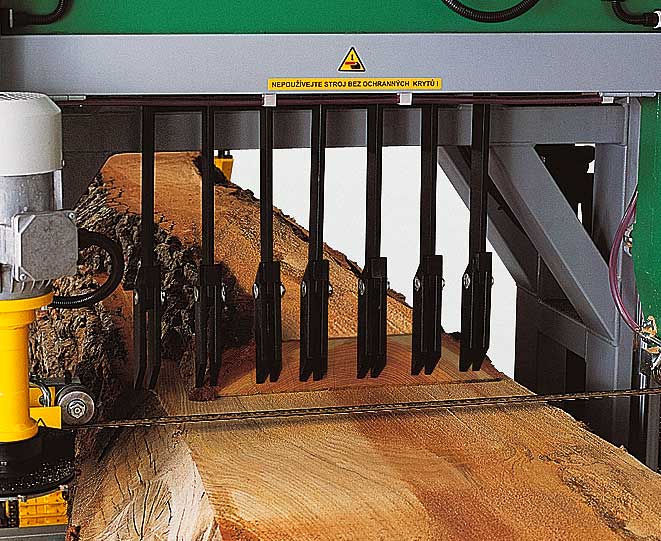

The very robust machine structure allows for installation of powerful hydraulic accessories that easily handles even very heavy timber.
Two way guidance of the bridge frame on the travel section in combination with a strong motor allows for smooth and quick pulling of even heavy cut pieces while using the sawn timber material feeder.
The machine is equipped with rapid travel of the bridge frame with automatic deceleration at end positions.
The extension sections with cutting lengths of 2, 4, and 6 metres allow for installation of hydraulic accessories according to your requirements.
The basic travel section and the extension sections are equipped with many clamping points for installation of hydraulic accessories, which allows for large flexibility during the design for the customers exact requirements.

Technical data





The basic version of the machine has main motor 22 kW a cut length of 6.7 metres and it is equipped with the following hydraulic accessories:

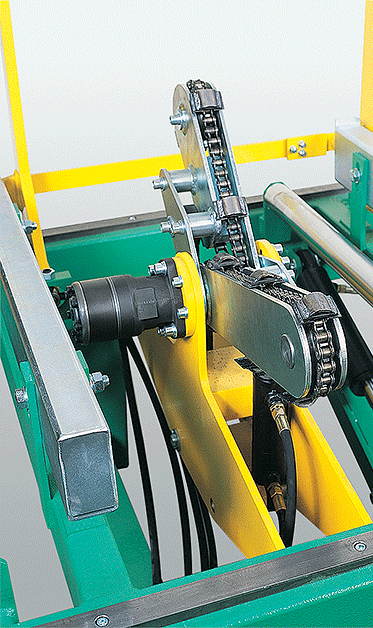

Log Turner
Retractable log turner - 1x

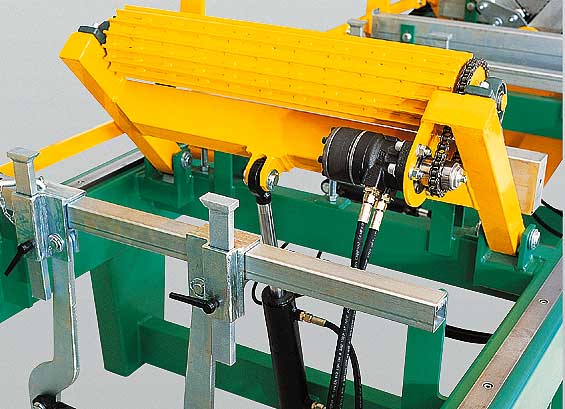

The most important, multifunctional tool of all the hydraulic accessories. It moves in the vertical and horizontal axes on rugged hard-chrome rods using two separately controlled hydraulic cylinders. It serves for clamping, turning, and feeding of the cut material to squaring arms.

Log Tapers

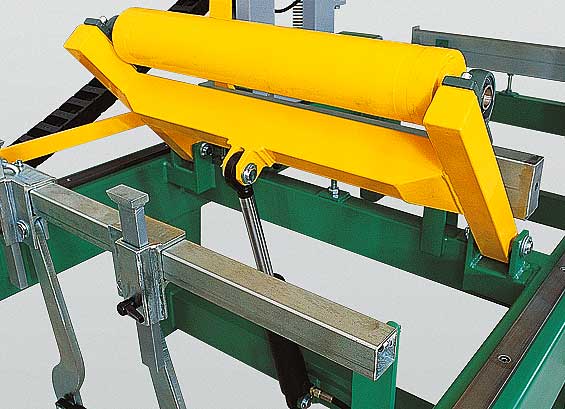

Log taper adjuster - 1x

Log taper adjuster with driven roller for horizontal feed - 1x
Both types of log taper adjusters are standard equipment of the machine. They serve to elevate the log axis in horizontal position according to the log taper or to elevate the whole log above the machine bed and to optimally adjust it on the machine bed by means of a driven roller of the log taper adjuster for horizontal feed. The horizontal feed roller is driven by a hydromotor.

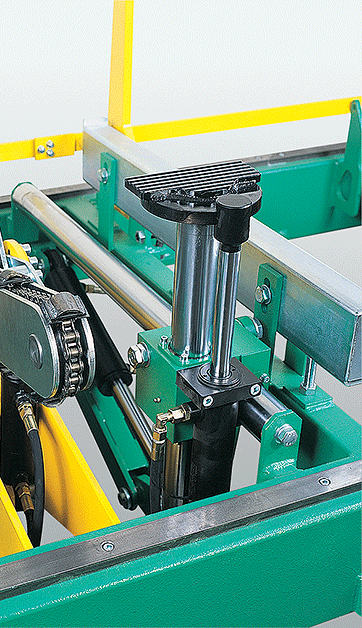

Trunk Clamping - 2x
The hydraulic clamps are automatically centered depending on the log cross section or they can be locked in the required position.

They can also be used for one-sided clamping of the log against the anti-roll back stops/squaring arms. All clamps are controlled together by one button. They are also hydraulically height adjustable according to the trunk shape.

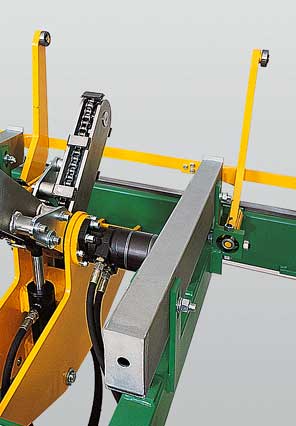

Angle Supports - 5x
The anti-roll back stops/squaring arms prevent the log from skipping when it is being loaded and turned and when balks are being sawn. All anti-roll back stops/squaring arms are lifted together by one button. The lever mechanism ensures that all anti-roll back stops/squaring arms are always set at the same height.

Special attachment:
Extending section:

cutting length 2m (no attachments)

cutting length 4m (hydraulic attachments is included: 1 log clamp, 2 anti-roll back stops/squaring arms)

cutting length 6m (hydraulic attachments is included: 1 log clamp, 4 anti-roll back stops/squaring arms

Sawn Timber Removal
This latest optional extra takes the hard work out of sawn timber removal and cuts out a great deal of unnecessary manhandling – and increases production. Like many good ideas it is simple. Hinged arms, mounted on the saw headrig, slide along the top surface of the log or previously sawn surface as it is being sawn.
When the saw has completed its cut, the arms drop down over the end of the sawn piece. Then, as the headrig returns for the next cut the arms effortlessly pulls back the sawn piece back with it and onto a hydraulically elevating feed roller.>

Hydraulically operated elevating feed roller
Hydraulically adjustable height depending on the size of the material cut. It enables the end of the sawn material to feed down onto a belt or roller conveyors.<

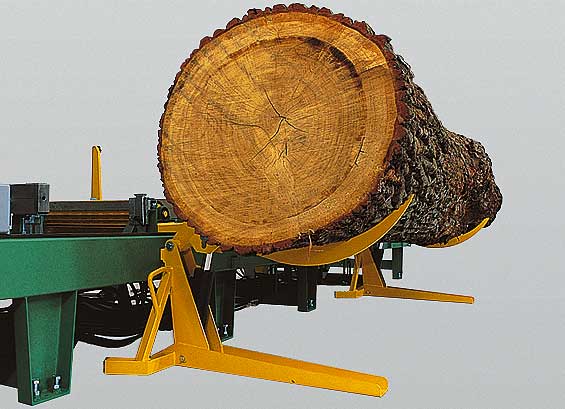

Log Loader
Special attachment. The double-arm log loader enables safe and quick lifting of the log to the machine bed. There are fixing points along the entire base frame so that the individual loaders may be easily moved depending on the length of the log being loaded. Each loader is separately controlled, which simplifies even handling of extremely tapered logs.

Two-Arm Log Turner

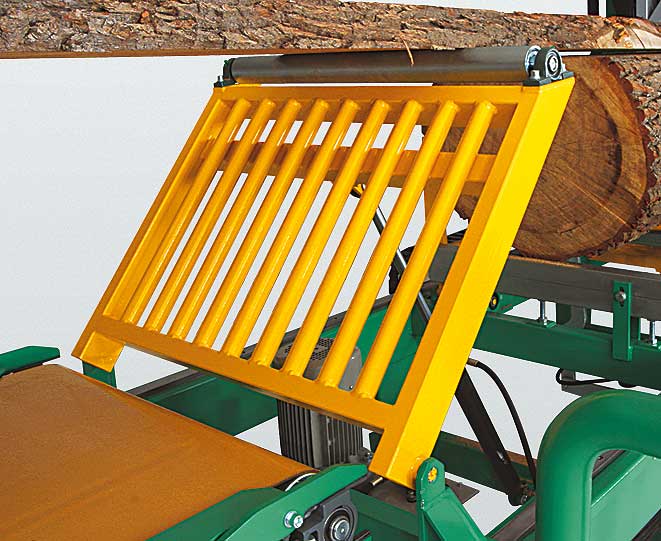

The powerful chain log turner is equipped with two tilting, separately controlled arms. There are chains put on them, driven simultaneously by the hydraulic motor, which makes easy turning of the material.

When cutting long timber with their frequent turning, we recommend equipping the machine with a couple of these turners that significantly shorten the needed handling times and thus increase machine productivity.

CTR 1000 Hydraulic

The very robust machine structure allows for installation of powerful hydraulic accessories that easily handles even very heavy timber. Two way guidance of the bridge frame on the travel section in combination with a strong motor allows for smooth and quick pulling of even heavy cut pieces while using the sawn timber material feeder. The machine is equipped with rapid travel of the bridge frame with automatic deceleration at end positions. The basic version of the machine has a cut length of 7.7 metres and it is equipped with the following hydraulic accessories: saw blade hard metal guide, 1x log turner, 2x log clamps, 5x squaring arms, 1 x log taper adjuster, 1x log taper adjuster with horizontal feed. The extension sections with cutting lengths of 3 metres allow for installation of hydraulic accessories according to your requirements. The basic travel section and the extension sections are equipped with many clamping points for installation of hydraulic accessories, which allows for large flexibility during the design for the customers exact requirements.

Technical data


The basic version of the machine has main motor 22 kW a cut length of 7.7 metres and it is equipped with the following hydraulic accessories:
Log Turner
Retractable log turner - 1x
The most important, multifunctional tool of all the hydraulic accessories. It moves in the vertical and horizontal axes on rugged hard-chrome rods using two separately controlled hydraulic cylinders. It serves for clamping, turning, and feeding of the cut material to squaring arms.

Log Tapers
Log taper adjuster - 1x

Log taper adjuster with driven roller for horizontal feed - 1x
Both types of log taper adjusters are standard equipment of the machine. They serve to elevate the log axis in horizontal position according to the log taper or to elevate the whole log above the machine bed and to optimally adjust it on the machine bed by means of a driven roller of the log taper adjuster for horizontal feed. The horizontal feed roller is driven by a hydromotor.

Trunk Clamping - 2x
The hydraulic clamps are automatically centered depending on the log cross section or they can be locked in the required position.

They can also be used for one-sided clamping of the log against the anti-roll back stops/squaring arms. All clamps are controlled together by one button.

Angle Supports - 5x
The anti-roll back stops/squaring arms prevent the log from skipping when it is being loaded and turned and when balks are being sawn. All anti-roll back stops/squaring arms are lifted together by one button. The lever mechanism ensures that all anti-roll back stops/squaring arms are always set at the same height.

Special attachment:
Extending section: cutting length 3m (1 anti-roll back stops/squaring arms)

Sawn Timber Removal
This latest optional extra takes the hard work out of sawn timber removal and cuts out a great deal of unnecessary manhandling – and increases production. Like many good ideas it is simple. Hinged arms, mounted on the saw headrig, slide along the top surface of the log or previously sawn surface as it is being sawn.

When the saw has completed its cut, the arms drop down over the end of the sawn piece.

Then, as the headrig returns for the next cut the arms effortlessly pulls back the sawn piece back with it and onto a hydraulically elevating feed roller.

Hydraulically operated elevating feed roller
Hydraulically adjustable height depending on the size of the material cut. It enables the end of the sawn material to feed down onto a belt or roller conveyors.

Log Loader
Special attachment. The double-arm log loader enables safe and quick lifting of the log to the machine bed. There are fixing points along the entire base frame so that the individual loaders may be easily moved depending on the length of the log being loaded. Each loader is separately controlled, which simplifies even handling of extremely tapered logs.

Two-Arm Log Turner
The powerful chain log turner is equipped with two tilting, separately controlled arms. There are chains put on them, driven simultaneously by the hydraulic motor, which makes easy turning of the material.

When cutting long timber with their frequent turning, we recommend equipping the machine with a couple of these turners that significantly shorten the needed handling times and thus increase machine productivity.

CTR 950 Hydraulic

The very robust machine structure allows for installation of powerful hydraulic accessories that easily handles even very heavy timber.
Two way guidance of the bridge frame on the travel section in combination with a strong motor allows for smooth and quick pulling of even heavy cut pieces while using the sawn timber material feeder.
The machine is equipped with rapid travel of the bridge frame with automatic deceleration at end positions.
The extension sections with cutting lengths of 2, 4, and 6 metres allow for installation of hydraulic accessories according to your requirements.
The basic travel section and the extension sections are equipped with many clamping points for installation of hydraulic accessories, which allows for large flexibility during the design for the customers exact requirements

Technical data


The basic version of the machine has main motor 15 kW a cut length of 7.7 metres and it is equipped with the following hydraulic accessories:
Log Turner
Retractable log turner - 1x
The most important, multifunctional tool of all the hydraulic accessories. It moves in the vertical and horizontal axes on rugged hard-chrome rods using two separately controlled hydraulic cylinders. It serves for clamping, turning, and feeding of the cut material to squaring arms.

Log Tapers
Log taper adjuster - 1x

Log taper adjuster with driven roller for horizontal feed - 1x
Both types of log taper adjusters are standard equipment of the machine. They serve to elevate the log axis in horizontal position according to the log taper or to elevate the whole log above the machine bed and to optimally adjust it on the machine bed by means of a driven roller of the log taper adjuster for horizontal feed. The horizontal feed roller is driven by a hydromotor.

Trunk Clamping - 2x
The hydraulic clamps are automatically centered depending on the log cross section or they can be locked in the required position.

They can also be used for one-sided clamping of the log against the anti-roll back stops/squaring arms. All clamps are controlled together by one button.

Angle Supports - 5x
The anti-roll back stops/squaring arms prevent the log from skipping when it is being loaded and turned and when balks are being sawn. All anti-roll back stops/squaring arms are lifted together by one button. The lever mechanism ensures that all anti-roll back stops/squaring arms are always set at the same height.

Special attachment:
Extending section: cutting length 3m (1 anti-roll back stops/squaring arms)

Sawn Timber Removal
This latest optional extra takes the hard work out of sawn timber removal and cuts out a great deal of unnecessary manhandling – and increases production. Like many good ideas it is simple. Hinged arms, mounted on the saw headrig, slide along the top surface of the log or previously sawn surface as it is being sawn.

When the saw has completed its cut, the arms drop down over the end of the sawn piece. Then, as the headrig returns for the next cut the arms effortlessly pulls back the sawn piece back with it and onto a hydraulically elevating feed roller.

Hydraulically operated elevating feed roller
Hydraulically adjustable height depending on the size of the material cut. It enables the end of the sawn material to feed down onto a belt or roller conveyors.

Log Loader
Special attachment. The double-arm log loader enables safe and quick lifting of the log to the machine bed. There are fixing points along the entire base frame so that the individual loaders may be easily moved depending on the length of the log being loaded. Each loader is separately controlled, which simplifies even handling of extremely tapered logs.

Two-Arm Log Turner
The powerful chain log turner is equipped with two tilting, separately controlled arms. There are chains put on them, driven simultaneously by the hydraulic motor, which makes easy turning of the material.

When cutting long timber with their frequent turning, we recommend equipping the machine with a couple of these turners that significantly shorten the needed handling times and thus increase machine productivity.

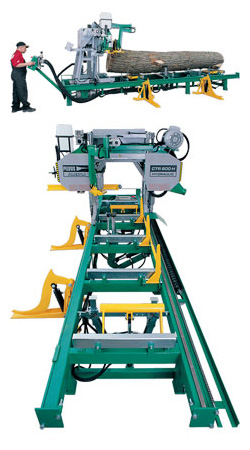

CTR 800 Hydraulic

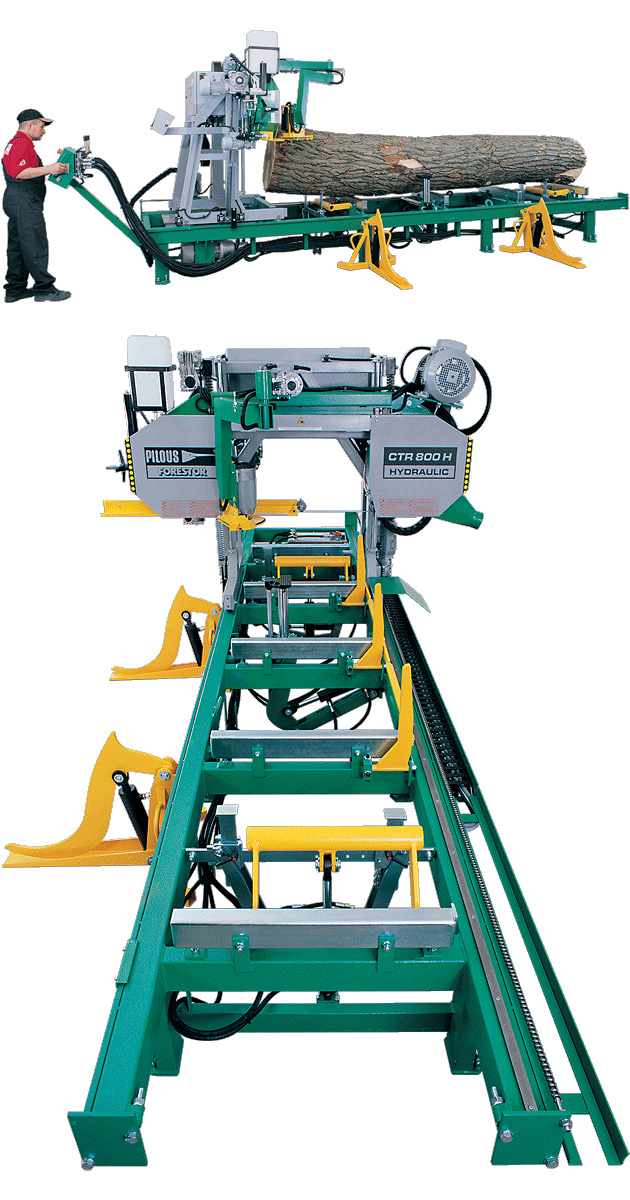

Design wise, it is based on the popular model CTR 800 S that is housed on a raised travel frame that allows for installation of complete hydraulic accessories.
Handling of the timber using the hydraulic accessories significantly increases machine productivity. At the same time, it saves labour costs, because the machine control and handling even of very heavy timber can be performed by one employee.
The extension sections with a cutting length of 3 metres allow for installation of hydraulic accessories according to your requirements.
Machine control is identical to type CTR 800 S. At the central control panel, there is also the control of the complete hydraulic accessories.

Technical data


The basic version of the machine has main motor 7,5 kW a cut length of 4.5 metres and it is equipped with the following hydraulic accessories:
Log Turner
Log turner - 1x
The retractable swing turner facilitates the feed of the log towards the anti-roll back stops/squaring arms; it helps when logs are turned in extreme positions and it can be used for clamping short timber.

Log Tapers
Log taper adjuster - 1x

Log Clamps - 2x
The hydraulic clamps are automatically centered depending on the log cross section or they can be locked in the required position. They can also be used for one-sided clamping of the log against the anti-roll back stops/squaring arms. All clamps are controlled together by one button.

Anti-roll Back Stops/Squaring Arms - 3x
The anti-roll back stops/squaring arms prevent the log from skipping when it is being loaded and turned and when balks are being sawn. All anti-roll back stops/squaring arms are lifted together by one button. The lever mechanism ensures that all anti-roll back stops/squaring arms are always set at the same height.

Special hydraulic accessories:

Extending section: cutting length 3m (1 anti-roll back stops/squaring arms included)


Double-arm hydraulic log tosser
Special attachment. The double-arm log loader enables safe and quick lifting of the log to the machine bed. There are fixing points along the entire base frame so that the individual loaders may be easily moved depending on the length of the log being loaded. Each loader is separately controlled, which simplifies even handling of extremely tapered logs.

Chain log turner
The powerful chain log turner is equipped with two tilting, separately controlled arms. There are chains put on them, driven simultaneously by the hydraulic motor, which makes easy turning of the material.

When cutting long timber with their frequent turning, we recommend equipping the machine with a couple of these turners that significantly shorten the needed handling times and thus increase machine productivity.

With type CTR 800 H, a single-arm type is used that turns the material against angle supports.
