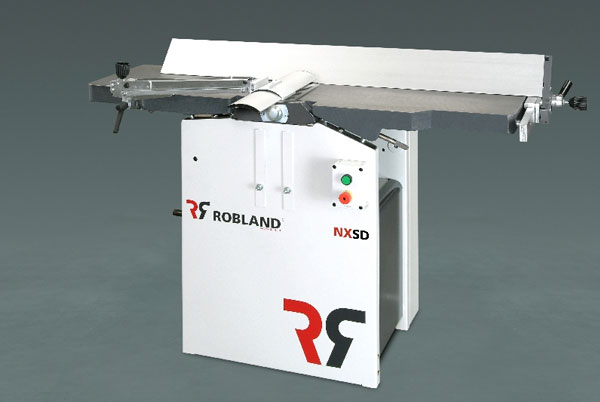

Planer-thicknesser NXSD310
DETAILS

Jointer fence
The large, hard anodized,
jointer fence makes edge
planing easy. Thanks to its
special swivel-support
bracket, the fence sets angle
without a gap between the
fence and the table surface.		   Thicknessing capacity
Up to 230 mm thicknessing
capacity with precision
setting and locking. The very
sturdy central column and
positive feed system ensure
excellent results

OPTIONS

Tersa
The 3-knives Tersa cutter
block offers you all the
confort, and precision when
changing the knives.		   Morticer
Circular slides ensure
smooth, easy movement of
the worktable. Large
travelcapacities handle a
wide variety of work.

TECHNICAL SPECIFICATIONS
NXSD310 Technical data
Tension 230 V Mono / 400 V Drehstrom - 3phase
Weight 280kg
Planer
Planer width 310 mm
Total length planer tables 1400 mm
Diameter cutter block 70 mm
Knives 3
Dimensions knives 310 x 25 x 3 mm
R.p.m. 5500
Dimensions planer fence 1300 x 150 mm
Inclination planer fence 90° - 45°
Max. depth of cut 4 mm
Motor power 4 pk/cv
Thicknesser
Dimensions thicknesser table 430 x 310 mm
Capacity thicknesser 230 mm
Diameter feed rollers 30 mm
Feeding speed 6 m/min.
Morticer (option)
Chuck 0 - 16 mm
Travel 165 x 140 x 85 mm
