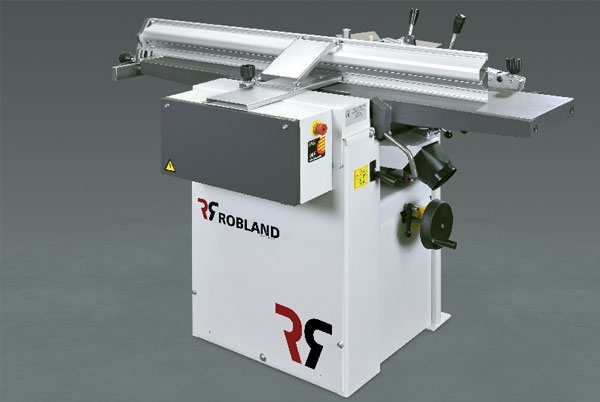

Planer-thicknesser XSD(B)310


DETAILS

Planer table
The long planer tables make
straightening workpieces
easy. Fine adjustment of
the tables is also easy
thanks to the large
handscrews. The planer
fence is very solid and tilts
with positive stops at 45 and
90 degrees.
  Thicknessing capacity
Up to 230 mm thicknessing
capacity with precision
setting and locking. The very
sturdy central column and
positive feed system ensure
excellent results


OPTIONS

Tersa
Tersa cutter-block with 3
reversibles knives (HSS),
provides quick, precise
setting of the knives.
  Morticer
The smooth and easy to
operate unit can be removed
from the machine within
minutes. It also has 2
detachable handles, easy
when machining large
workpieces.


TECHNICAL SPECIFICATIONS
XSD310 Technical data
Tension 230 V Mono / 400 V Drehstrom - 3phase
Weight 250kg
Planer
Planer width 310 mm
Total length planer tables 1400 mm
Diameter cutter block 70 mm
Knives 3
Dimensions knives 310 x 25 x 3 mm
R.p.m. 5400
Dimensions planer fence 1300 x 150 mm
Inclination planer fence 90° - 45°
Max. depth of cut 4 mm
Motor power 3 pk/cv
Spindle
R.p.m. machine 400 V 3000/6000
R.p.m. machine 230 V (single phase) 6000
Diameter spindle arbor 30 mm (option 50 mm)
Capacity spindle arbor 120 mm
Thicknesser
Dimensions thicknesser table 430 x 310 mm
Capacity thicknesser 230 mm
Diameter feed rollers 30 mm
Feeding speed 6 m/min.
Morticer (option)
Chuck 0 - 16 mm
Travel 165 x 140 x 85 mm
