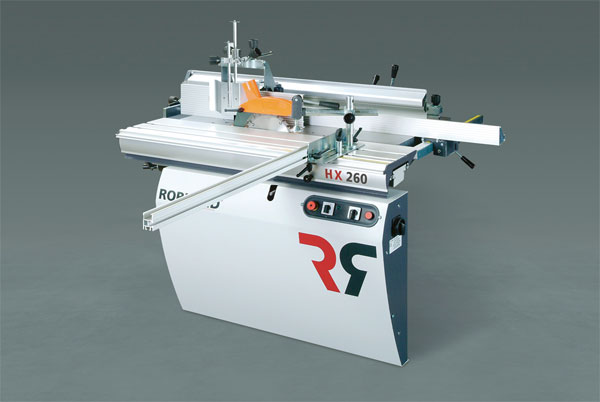

Combined Machine HX 260
DETAILS

Mitre cross-cut fence
In both directions 2 x 45°
mitre cross-cut fence,
standard feature on the
machine		   Spindle arbor
Standard spindle diameter
is 30 mm (optional 50 mm
or 1 1/4"), the working length
is 120 mm. The up and
down stroke is 140 mm.		   Jointer fence
The large, hard anodized
jointer fence makes edge
planing easy. Thanks to its
special swivelsupport
bracket, the fence sets at
any angle without a gap
between the fence and
the table surface.


Setting the height
Setting the height of the
thicknessing table is easy
and simple, the travel up/
down is 230 mm.

OPTIONS

01PENNEKAP
Safety hood for
tenoning with
diameter capacity
260 mm		   Tersa
The 3-knives Tersa cutter
block offers you all the
confort, and precision when
changing the knives.		   Wheel system
The wheel system allows
you to move the machine
with great ease.


01TAFELG Support table
Optional on the HX310 and
NX310, cast iron power feed
"fold away" support table.		   Tenoning table
The heavy duty tenoning
table enables you to
execute in all safety all
tenoning work.		   Spindle arbor 50 mm
diameter


01BT - Morticer
Circular slides ensure
smooth, easy movement of
the worktable. Large
travelcapacities handle a
wide variety of work.		   Digital read out
The optional digital
read out on the parallel
fence guarantees reliable
repetitive precision.

TECHNICAL SPECIFICATIONS
HX260 Technical data
Weight (net) 500 kg
Tension 230 V Mono / 400 V Drehstrom - 3phase
Saw
R.p.m. 4500
Diameter saw blade and bore 250 x 30 mm
Cutting depth at 90° 85 mm
Cutting depth at 45° 55 mm
Dimensions cast iron table 1077 x 273 mm
Length sliding table 1250 mm
Cutting length 1400 mm
Width sliding table 320 mm
Cutting width parallel fence 600 mm
Motor power 3 PS/hp
Spindle
R.p.m. machine 400 V 3000/6000
R.p.m. machine 230 V (single phase) 6000
Diameter spindle arbor 30 mm (option 50 mm)
Capacity spindle arbor 120 mm
Travel 140 mm
Dimensions table opening 180 mm
Motor power 3 PS/hp
Planer-Thicknesser
Total length planer tables 1320 mm
Capacity thicknesser 230 mm
Diameter cutter block 70 mm
Knives 3
Dimensions knives 310 x 25 x 3 mm
Feeding speed 6 m/min
R.p.m. 5500
Motor power 3 PS/hp
Morticer (option)
Chuck 0 - 16 mm
Travel 165 x 140 x 85 mm
